SM05F
Waterproof Monitor System
![SM05F Monitor VerityRVS (WEB).jpg](https://static.wixstatic.com/media/d7b0df_d2dc8e5d8e454a5ea020f01cbd6b9713~mv2_d_2704_2262_s_2.jpg/v1/fill/w_330,h_275,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/SM05F%20Monitor%20VerityRVS%20(WEB).jpg)
MONITOR SPECIFICATIONS
(Separate Monitor Part #MK05F)
Screen size: 5-inch digital screen (4:3)
Monitor is waterproof with IP 69 rating
2 camera inputs using 4-pin aviation plugs
Long Life High Resolution: 640 × 480 Pixel (RGB)
Contrast: 500:1
Brightness: 400 cd/m2
Power: DC 12V~32V reverse polarity protection
Operation temperatures: -10°~65°C
Storage temperature: -30°~80°C
Easy to use OSD menu function, Mirror/Normal image, multi-language, trigger wire activation
U-bracket monitor mount
No sound due to the IP 69 rating

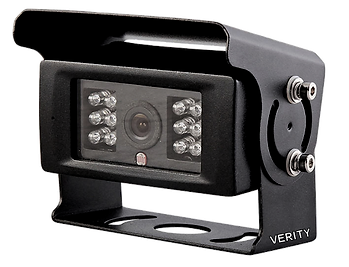

CAMERA SPECIFICATIONS
(Camera Part# C075F)
Aluminum housing waterproof camera with Allen screws for insured positioning
Viewing angle: 120°
Waterproof: IP69
Shockproof: 10G
Image Type: 1/3 Inch Color CCD Sharp®
Horizontal Resolution: 420 TV Lines
Illumination : 0Lux (built-in 12 IR LEDs for night vision)
Operating temperature: -40~70°C
Power supply: 12V DC (powered by monitor)
![](https://static.wixstatic.com/media/d7b0df_dcf9d89c1a324e8bba4b4c5d7c3ef06b~mv2.jpg/v1/fill/w_143,h_214,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/d7b0df_dcf9d89c1a324e8bba4b4c5d7c3ef06b~mv2.jpg)
![](https://static.wixstatic.com/media/d7b0df_ca4330bceec343c28427ff039b027dcf~mv2.gif)
C075F
Includes CB020 20 Meter (65 Feet)
M/F Camera Extension Cable
